Start with the mounting surface
Confirm magnetic contact first, then match the connector, antenna length, and driving profile before comparing footprints.
mountfit screenroof materialsteel contactconnectorNMO / SO-239 / studantenna lengthmodel-specific guidancedriving profilespeed + service
What the tool will and will not do

It will create an initial comparison shortlist from the roof, connector, antenna length, and use profile you entered.

It will tell you when a triple base or custom plate is a better fit than a single base.

It does not certify vehicle retention, RF performance, HF grounding, or a rough-service installation.

Screen the setup, then verify the evidence
Start with the selector. Then check the product examples, source links, and evidence gaps before specifying a mount.
Screen, then verifyUse the setup details to narrow options. Confirm each product's limits.ScreenRun selectorget a shortlistidentify open checksVerifyverify sourcescompare optionsunderstand risks
Report summary

Start with surface, connector, and use profile

First confirm that the mounting surface is magnetic. Then match the antenna interface and compare the setup with product-specific guidance. Treat missing retention or test data as an open check.

Antenna magnetic mounts use several connector standards.
The terms antenna magnetic mount and antenna magnet mount describe the same broad product type. The connector and antenna family still determine which base can fit.
Connector family decides the shortlist before magnet count does.
Current published examples split across NMO, SO-239, 3/8-24, and custom bolt-circle plates. If the connector is wrong, the rest of the mount can still be wrong even when the footprint looks stronger.
Published single-base guidance is model-specific.
Firestik K-11 guidance covers named Firestik and Firestik II antennas up to 3 ft, or Firefly and Road Pal models up to 4 ft. Do not treat those figures as universal limits for other antenna and mount pairs.
Check the roof before comparing magnet footprints.
For magnetic mounts, aluminum, fiberglass, and hidden steel roofs still block the core install path. Counterexample exists only for specific no-ground-plane antenna families, which must be checked by band and model instead of assumed as universal.
Speed profile changes load faster than many buyers expect.
NASA drag equation framing keeps this concrete: when velocity rises, drag scales with V². At the same antenna profile, a 75 mph duty profile carries about 1.86x the aerodynamic load of 55 mph.
A larger Newton number is not a dynamic retention certification.
MagMount X publishes 3 x 411 N pull force. NIST conversion puts that at roughly 1,233 N (~277 lbf) static equivalent, but that still does not publish a vehicle-speed, vibration, or lifetime retention rating.
“Stainless” is not a reliable proxy for magnetic hold.
Industry stainless references separate ferromagnetic ferritic/martensitic/duplex families from low-magnetic austenitic families, and cold work can change response. Verify pull at the exact panel location before finalizing a magnetic path.
Cable choice is RF loss plus mechanical routing, not one number.
In current public data, LMR-240-UF publishes lower bending moment than standard LMR-240, while standard LMR-240 publishes the stronger attenuation baseline. Route geometry and connector strain decide which trade-off is safer.
Antenna placement may need a separate RF-exposure review.
As of 2026-10-10, FCC rules use a 20 cm separation boundary in mobile-versus-portable RF-exposure evaluation. This mount screen does not replace a service- and installation-specific compliance review.
Single versus triple footprint
Published examples show a real spread in footprint and connector hardware, not one universal solution.
Footprint spreadPublished examples range from one 4.9 to 5 inch base tothree 88 to 90 mm magnets or three 5 inch magnets.Single4.9 to 5 inTriplespread load, drag, and cable path
Good fit

Steel roof or tank where a drilled mount is not acceptable.

Medium or larger antennas that have already outgrown casual single-base assumptions.

Temporary or semi-permanent installs where cable routing and removal still matter.

Escalate away from magnetic mount

Aluminum, fiberglass, panoramic-glass, or hidden-roof structures.

HF or rough-service jobs where ground path and vibration become system-level risks.

Long or top-loaded whips that need a fleet-standard permanent bracket or drilled roof.

Method and evidence

How to screen a magnetic antenna mount

This desk review uses manufacturer product pages, published datasheets, and standards references. Product examples were checked on 2026-09-23; regulatory references were checked on 2026-10-10. No road-retention, pull-off, or RF tests were conducted for this page.

Decision flow
The tool starts with the roof, then narrows the connector and footprint instead of starting with marketing adjectives.
Start with roof materialFlat magneticsteel roofPainted orslightly curvedAluminum,fiberglass, hiddenSingle or tripleTriple or plateUse bracket or drill
Surface readiness
Steel quality and shape decide whether a magnetic mount is viable before connector choice matters.
Surface readiness screenMagnetic-friendly steel is the hard gate before you size the mount.Flat steel roof100%Painted steel roof78%Curved or uneven steel62%Aluminum or fiberglass8%
1. Confirm the roof is actually magnetic
The page treats roof material as the first gate because even the strongest magnetic base is unusable on aluminum, fiberglass, or hidden-roof structures.
2. Lock the hardware interface before shopping by footprint
The current market split is real: NMO, SO-239, 3/8-24, and bolt-circle platforms each lead to different mount decisions.
3. Use antenna length and duty cycle to decide single versus triple
Published single-base examples stay closer to moderate antenna use. Triple bases and plate systems appear when antenna size, drag, or daily speed increases.
4. Escalate early for HF or rough service
HF and rough-service installs move beyond a simple mount purchase because grounding, shock, and retention become part of the system rather than just the base.
5. Translate speed to load multiplier before final sign-off
NASA drag-equation scaling (D ∝ V²) compares speeds under the same shape, air density, and orientation: 75 mph is about 1.86x the speed-only drag at 55 mph. It does not predict mount retention or a safe speed.
Published product ledger refreshed on 2026-09-23
These are product-specific anchors used to ground the page. They are evidence signals, not interchangeable guarantees.
ProductFootprintInterfaceCablePublished note
Firestik K-114.9 in single baseMount-end ring / radio-end PL-25918 ftPublished recommendation up to 3 ft Firestik / II and up to 4 ft Firefly / Road Pal.
MFJ-335BM5 in single base, 2 1/2 lbNMOwith cablePublished as medium-to-heavy-duty for medium to large antennas.
Chelegance JMOUNT-3HD3 x 90 mm triangular baseSO-239 to PL-2595 m RG58Published as heavy-duty support for large antennas with rubber protection.
MFJ-336TThree 5 in magnets on 1/4 in plate3/8-2417 ftPublished as Goliath tri-magnet mount and warned as difficult to remove once placed.
Antenna Products MagMount X3 x 88 mm magnets, 18.38 in max width4-hole bolt circlecustom top interfacePublished for magnetic-friendly surfaces with articulated magnets for slight curvature.
MFJ-330 ground plane padAdjacent accessorySO-239 magnet systemsn/aPublished to strengthen HF magnet-mount signal when direct chassis ground is unavailable.
PCTEL NMO style mounts3/4 in hole, metal thickness to 0.046 in1-1/8 in-18 threadmount hardware envelopePublished mechanical boundary for NMO-style mount hardware and panel thickness.
PCTEL no-ground-plane elevated-feed seriesMirror/trunk-lid and non-metallic scenarios1-1/8 in-18 thread ecosystemmodel-specificPublished counterexample path where no ground plane is available, especially LTE/cellular mobile families.
RF Grounding via Capacitive CouplingParallel-plate capacitor effectVehicle roof (dielectric: paint)n/aEffective for VHF/UHF bands; high capacitive reactance at HF frequencies often requires a direct chassis ground strap for acceptable SWR.
Comparison

Choose a mount that matches the surface and connector

Compare single-base, multi-magnet, and plate-style examples only after confirming the mounting surface and antenna interface. A larger footprint does not establish a safe vehicle-speed rating.

Connector families in the current market
Connector mismatch is one of the easiest ways to buy the wrong mount.
Connector path comes firstCurrent heavy-duty examples are not interchangeable by hardware.NMOMFJ-335BM5 in single baseSO-239Chelegancetriple 90 mm3/8-24Firestik / MFJstud-style whips
PlatformBest whenHardware pathPublished signalWatchouts
Single heavy NMO baseShort to medium antennas, flat steel roof, and a no-drill road install.NMO connector path.MFJ-335BM: 5 in base, 2 1/2 lb weight, medium-to-heavy-duty, medium to large antennas.Still a single footprint. Do not treat it as interchangeable with a triple base.
Single heavy stud baseShorter 3/8-24 whip installs where removal speed matters more than the biggest footprint.3/8-24 stud with coax lead to the radio.Firestik K-11: 4.9 in base, 18 ft coax, up to 3 ft Firestik / Firestik II or 4 ft Firefly / Road Pal.Published guidance is explicitly shorter-whip territory, not a blank check for larger antennas.
Triple SO-239 baseLarger temporary installs where the antenna expects SO-239 and the roof is still ferrous.SO-239 at the mount, PL-259 on the radio side.Chelegance JMOUNT-3HD: 3 x 90 mm magnets, 5 m RG58, rubber boots, large-antenna positioning.Paint, curve, and highway drag still need a placement test even on a wider base.
Triple 3/8-24 platformStud-based whips that have already outgrown a single-magnet answer.3/8-24 stud on a triangular plate.MFJ-336T: three 5 in magnets on a 1/4 in triangular mount with 17 ft coax.Strong hold does not remove HF, off-road, or grounding boundaries.
Articulated custom plateCustom bolt-circle antenna feet, slightly curved steel, or industrial temporary installs.4-hole bolt circle / custom top plate.Antenna Products MagMount X: 3 x 88 mm magnets, 3 x 411 N grip force, 12 ga steel body, rubber contact.This is still limited to magnetic-friendly surfaces and product-specific geometry.
No-ground-plane elevated-feed fallbackVehicle surface is non-magnetic and the antenna family has a published no-ground-plane option.1-1/8 in-18 thread mount ecosystem; mirror/trunk-lid style installs.PCTEL elevated-feed no-ground-plane series publishes use on non-metallic surfaces and mirror/trunk-lid mounting.This is not a universal rescue path for every band or antenna family. Validate exact frequency model and radiation pattern before reuse.
Need a reviewed shortlist before RFQ?
Share roof material, connector family, antenna length, and duty profile so we can confirm whether your fit stays in single-base, triple-base, or non-magnetic mount territory.
Standards and gaps

What standards can verify, and where public product data still stops

Product examples were reviewed on 2026-09-23; the regulatory references were reviewed on 2026-10-10. This section separates standard test scopes from the evidence published for individual products.

Standards boundary table
Use this table to separate defined standards scope from missing product-level disclosure.
Published example: MagMount X lists 3 x 411 N. NIST conversion gives a static equivalent of roughly 277 lbf, which is useful for unit normalization but is not a dynamic speed or vibration certification.
Standard/sourceWhat it definesHow to use in decisionsCurrent disclosure gap
IEC 60529 (IP code)Defines enclosure ingress protection against solids and liquids, with explicit test methods.Use it to verify weather-sealing claims for outdoor mount assemblies.Reviewed product pages do not publish a full-assembly IP code; request model-specific test evidence from the supplier.
ISO 20653:2023 (road-vehicle IP code)Defines IP-code requirements and validation tests for electrical equipment used on road vehicles.Use it when buyers need an automotive-specific ingress benchmark.No reviewed page discloses ISO 20653 compliance for the mount assembly; request model-specific test evidence from the supplier.
ASTM B117Defines salt-spray apparatus and procedure, but does not prescribe product-specific pass/fail life.Useful only when a seller publishes the exact test duration and acceptance rule.No reviewed page publishes ASTM B117 test hours or acceptance criteria; request the test profile and report from the supplier.
ISO 16750-3:2023Describes mechanical load stresses and location-based tests for vehicle electrical/electronic equipment.Use it to evaluate vibration/shock readiness in fleet or rough-service installs.No reviewed page publishes ISO 16750-3 class-level verification; request the applicable test report from the supplier.
NASA drag equation (D ∝ V²)Shows aerodynamic drag scaling with the square of velocity when shape, area, and air density are held constant.Use relative speed multipliers to avoid underestimating retention risk in higher-speed duty profiles.Catalog pages generally do not publish antenna frontal-area + drag-coefficient test sets, so this supports relative comparison rather than absolute force certification.
PCTEL NMO and no-ground-plane referencesDefines practical mount geometry and no-ground-plane fallback conditions for selected mobile antenna families.Use to screen hardware compatibility and avoid treating non-magnetic roofs as a single all-or-nothing conclusion.Band-specific no-ground-plane compatibility varies by model; confirm the supported band and pattern with the antenna manufacturer.
NIST SP 811 (force conversion)Provides conversion factors including pound-force to newton and vice versa.Makes pull-force numbers comparable across suppliers that publish N or lbf.Unit conversion helps comparison, but does not replace dynamic retention testing.
TE vehicle-antenna validation scope note (2025)TE states vehicle antenna portfolios can involve electrical, mechanical, and environmental validation depending on use case, including shock, vibration, wind survival, temperature, and humidity.Use as an RFQ checklist: request which tests, conditions, and pass/fail criteria apply to the exact mount SKU and installation context.Reviewed mount listings do not provide a comparable SKU-level validation matrix with explicit thresholds; request the test profile for the exact part.
PCTEL no-ground-plane MLPV referencePCTEL publishes a ground-plane-independent low-profile family for no-ground-plane installs, with IP67 claim and 1-1/8 in-18 mount compatibility (including 3/4 in mounts).This is a concrete fallback path when magnetic hold fails and the selected antenna family is compatible.It does not prove universal cross-band replacement for every magnetic whip/mount combination; model-by-model RF verification is still required.
FCC regulatory envelope (US) for planning
Regulatory refresh on 2026-10-10. This adds service-power and exposure-boundary context so teams do not treat mount selection as a hardware-only decision.
Scope note: this table is a screening aid for engineering and procurement conversations, not legal advice. Final compliance still depends on the exact radio service, hardware, antenna placement, and use profile.
Service (US FCC)Published power envelopeDecision impact for mount planning
CBRS (47 CFR §95.967)4 W AM/FM carrier, 12 W SSB PEPIf expected use exceeds this envelope, move to another licensed service path instead of forcing fit around a CB setup.
GMRS main channels (47 CFR §95.1767)Mobile/repeater/base transmitter output up to 50 WHigher legal power can amplify cable-loss and exposure-planning consequences; keep cable and separation decisions explicit.
MURS (47 CFR §95.2767)Transmitter output up to 2 WLower-power envelope can reduce link-margin pressure, but does not remove roof-material and connector-fit boundaries.
Amateur service (47 CFR §97.313)Use minimum necessary power; maximum 1.5 kW PEP with band-specific lower capsHigh-power cases should be treated as engineering projects with explicit grounding, exposure, and duty-cycle validation.
Band example§1.1310 basisDerived planning valueWhat this changes
27 MHz (CB region)General-population 1.34-30 MHz formula from §1.1310: 180/f² mW/cm²0.247 mW/cm² (derived at f = 27)Use frequency-specific math; do not reuse VHF/UHF assumptions on HF/CB bands.
146 MHz (VHF mobile)General-population 30-300 MHz row from §1.13100.2 mW/cm²Common VHF mobile example where a fixed table limit applies without frequency substitution.
462 MHz (GMRS main)General-population 300-1500 MHz formula from §1.1310: f/1500 mW/cm²0.308 mW/cm² (derived at f = 462)Shows higher allowed power density than VHF row, but still requires separation and exposure review.
915 MHz (ISM/mobile telemetry)General-population 300-1500 MHz formula from §1.1310: f/1500 mW/cm²0.610 mW/cm² (derived at f = 915)Illustrates that the same formula yields a different planning value as frequency changes.
2.4 GHz and above (up to 100 GHz)General-population 1500-100000 MHz row from §1.13101.0 mW/cm²Use with mobile/portable classification and real antenna placement, not as a blanket safety claim.

Derived MPE values above are computed from published FCC formulas for planning comparison only. They do not replace a final compliance evaluation for the real installation geometry.

Load and cable trade-off reality check
Compare relative drag at different speeds for the same antenna profile, then compare published 900 MHz cable loss for an 18 ft run.
Road speedRelative drag loadDecision note
45 mph1.00xBaseline for a speed-only comparison with the same antenna shape, air density, and orientation. This is not an absolute mount load.
55 mph1.49xAlready ~49% above 45 mph baseline in V²-based drag scaling.
65 mph2.09xAbout 2.09x the 45 mph baseline in the speed-only model; this does not establish a mount or antenna retention limit.
75 mph2.78xAbout 1.86x the 55 mph baseline. No product-specific highway approval or safe-speed rating is implied.
Gusts / crosswindNot modeledThe speed-only V² comparison does not quantify transient or multidirectional loads. Use product-specific retention evidence for the actual installation.

Relative-load table uses NASA drag-equation scaling with the same antenna shape, air density, and orientation. It does not calculate absolute force, quantify gusts, or establish a safe speed or certified retention result.

Cable900 MHz attenuationApprox. 18 ft lossPublished max frequencyTrade-off note
Belden 8240 RG-58A/U13.7 dB / 100 ft~2.47 dB4.0 GHzBaseline in many mobile kits; highest 900 MHz loss among compared options.
Times Microwave LMR-195-UF13.2 dB / 100 ft~2.38 dB5.8 GHzUltra-flex path with similar 900 MHz loss class to RG-58 in short runs.
Times Microwave LMR-240-UF9.0 dB / 100 ft (0.09 dB/ft)~1.62 dB6.0 GHzLower 900 MHz loss than RG-58 while keeping ultra-flex construction.
Times Microwave LMR-2407.0 dB / 100 ft (0.07 dB/ft)~1.26 dB8.0 GHzLowest loss in this set, but with higher published bending moment than LMR-240-UF.

Approximate 18 ft losses are derived from published per-foot or per-100 ft attenuation values. Field performance still depends on connector quality, bend radius, routing, and final impedance consistency.

CableInstall bend radiusRepeated bend radiusBending momentFlat plate crushDecision note
Times Microwave LMR-2400.75 in2.5 in0.25 ft-lb20 lb/inLower-loss baseline in this page, but with higher published bend moment than LMR-240-UF.
Times Microwave LMR-240-UF0.75 inNot listed in the reviewed UF sheet; request repeated-bend guidance from the manufacturer.0.125 ft-lb13 lb/inLower bending moment can reduce route stress, but published attenuation is higher than standard LMR-240.
Belden 8240 RG-58A/U1.9 inNot disclosed in the reviewed product data.Not disclosed in the reviewed product data.Not disclosed in the reviewed product data.Useful baseline cable, but with both higher loss and larger minimum bend radius in the reviewed data set.

Use attenuation and cable-routing limits together. A lower loss figure does not automatically make a cable the better choice for a tight or moving route.

Boundary factPublished signalDecision impact
NMO mount hardware envelopePCTEL NMO style mounts: 3/4 in hole, 1-1/8 in-18 thread, metal thickness up to 0.046 in.If panel stack-up or mount geometry exceeds this range, the install is no longer plug-compatible with standard NMO assumptions.
No-ground-plane elevated-feed counterexamplePCTEL publishes elevated-feed antennas that do not require a ground plane and are aimed at mirror/trunk-lid or non-metallic surfaces.Useful fallback when magnetic roof path fails, but selection remains band- and model-specific (not a blanket replacement for magnetic mounts).
NMO thick-plate mount envelopeTE NMO through-hole references list thick-plate variants for about 3/16 to 1/4 in and adjustable versions up to 1/2 in, with standard 17 ft cable and optional 14 ft lengths.If roof stack-up or adapter hardware exceeds this envelope, switch to another mounting geometry early instead of forcing a nominal NMO-through-hole fit.
Stainless family magnetic responseBSSA/ASSDA technical guidance indicates ferritic, martensitic, and duplex stainless families are generally magnetic, while austenitic families are often low-magnetic in annealed state and can shift after cold work.Treat “stainless” as incomplete information. Run a direct pull check at the final mount location before approving a magnetic install path.

This table adds an explicit counterexample and keeps its limitations visible: no-ground-plane products can help in specific families, but cross-band equivalence is still pending confirmation from the supplier.

Evidence gap register
These are decision-critical unknowns that remain unresolved in public product listings.
Vehicle-speed retention limit by SKU

Status: Open (reviewed 2026-09-23). None of the seven reviewed product and mount-reference pages publishes a vehicle-speed retention rating. Firestik gives qualitative side-burst guidance, not a quantified speed or gust rating.

Decision impact: The reviewed catalog evidence does not establish a safe highway speed or quantify gust retention for a specific antenna, mount, and vehicle.

Minimum action: Request retention evidence for the exact antenna, mount, roof surface, and duty profile. If the supplier cannot provide it, use a permanent mounting method or obtain an installation-specific engineering review.

Ingress code for full mount assembly

Status: Product pages list mechanical details, but no full-assembly IP code was found in the reviewed sources.

Decision impact: Outdoor and washdown durability cannot be compared objectively.

Minimum action: Request IEC 60529 or ISO 20653 test evidence for the full assembly, not only materials claims.

Corrosion duration and acceptance criteria

Status: No ASTM B117 test duration or acceptance criteria were found in the reviewed product pages.

Decision impact: "Weather-resistant" statements are hard to benchmark across suppliers.

Minimum action: Require salt-spray duration, failure definition, and post-test function criteria in RFQ.

Vibration/shock class disclosure

Status: No reviewed product page states an ISO 16750-3 class or equivalent.

Decision impact: Rough-road and service-fleet suitability remains uncertain.

Minimum action: Ask for lab reports tied to mounting location and duty profile before committing.

Band-specific no-ground-plane equivalence

Status: The reviewed sources do not show a no-ground-plane equivalent for every magnetic-mount antenna family.

Decision impact: Teams may over-generalize one LTE/cellular fallback and miss VHF/UHF/HF compatibility limits.

Minimum action: Require model-level datasheet, supported band list, and radiation pattern before using no-ground-plane as the replacement path.

SKU-level ruggedness matrix (shock/vibration/wind/temperature)

Status: Compared mount pages do not publish a consistent test-profile matrix mapped to each SKU.

Decision impact: Rough-service and fleet claims are difficult to benchmark across suppliers or product families.

Minimum action: Require test method, condition profile, and pass/fail thresholds tied to the exact part and installation location.

Final-panel metallurgy disclosure at mount location

Status: Catalog and mount pages do not disclose the vehicle panel metallurgy or cold-work condition at the final install point.

Decision impact: “Stainless” or “steel” labels can produce false confidence about real magnetic hold.

Minimum action: Perform location-specific hand-magnet and slip checks on the target panel before committing the magnetic route.

Scenarios

Four common installations lead to different mount choices

These examples show how the roof, connector, and use profile change the screening result. They are comparison scenarios, not tested vehicle installations.

Scanner or VHF/UHF roof install
Flat steel roof, moderate antenna length, and a clear NMO path usually keep the job in single heavy-base territory.
The right next step is to confirm connector family and roof contact area before stepping up to a triple base unnecessarily.
CB or mobile whip that already outgrew a single base
This is the classic antenna magnetic mount intent (also searched as antenna magnet mount): more footprint, more stability, and still no drilling.
A triple SO-239 or triple 3/8-24 platform becomes the practical answer once the whip length and speed profile rise together.
Temporary custom-foot antenna on steel equipment
If the antenna foot wants a bolt circle instead of radio-standard hardware, a plate system is more honest than forcing the job into a consumer connector.
Use a plate platform and validate curvature, cable exit, and removal workflow before treating it as production-ready.
Aluminum or composite vehicle roof
This is where buyers lose time chasing stronger magnets instead of changing the install method.
Move directly to a bracket or permanent mount review. Magnet count does not rescue a non-magnetic roof.
Risks and limits

Where a magnetic antenna mount decision breaks down fastest

This section keeps the report honest. The page is only useful if it shows where roof material, connector certainty, and magnetic retention stop being safe shortcuts.

Boundary map
Green means likely fit. Yellow means validate on the vehicle. Red means leave magnetic mounts behind.
When the page stops recommending magnetsGreenSteel roofmoderate antennaroad useYellowPaint, curve,highway dragadd test planRedNon-magnetic roofrough service or HFuse another mount
Risk table
Non-magnetic roof failure

Why it matters: The roof material kills the magnetic path before mount size matters.

How to handle it: Verify the target panel with a test magnet and move to hood, mirror, rack, or drilled mounts when steel is weak or absent.

Connector mismatch

Why it matters: Published magnetic-mount examples span NMO, SO-239, 3/8-24, and custom bolt circles.

How to handle it: Check the antenna foot or existing hardware first, then choose the footprint that matches the real connector family.

Drag, turbulence, and highway walking

Why it matters: Drag rises with speed, and Firestik warns that a side burst from a passing truck can affect a magnetic mount. That qualitative warning is not a quantified speed or retention rating.

How to handle it: Do not treat magnet count or a heavy-duty label as highway approval. Request evidence for the exact antenna and vehicle setup; if it is unavailable, use a fixed mount or get an installation-specific review.

Paint wear and capacitive coupling breakdown

Why it matters: Trapped debris scratches paint over time, while moisture and rust degrade the capacitive coupling (parallel-plate) needed for a clean RF ground.

How to handle it: Regularly remove, clean, and inspect the mount area. Do not insert thick protective pads between the magnet and roof, as this destroys capacitive coupling.

HF grounding assumptions

Why it matters: HF magnet-mount systems may need additional grounding support when a direct chassis path is unavailable.

How to handle it: Treat HF as a boundary case, review ground path early, and use accessories or another mount type when the system requires it.

Missing dynamic-rating disclosure

Why it matters: The reviewed product pages publish dimensions and hardware, but not a standardized vehicle-speed retention rating.

How to handle it: Treat catalog claims as pre-qualification only and require a test-backed speed/duty validation step before deployment.

RF exposure classification mismatch

Why it matters: FCC definitions treat mobile and portable use differently, with 20 cm as the classification boundary in Part 2 references.

How to handle it: Treat antenna-to-occupant separation as a design input from the first layout step and re-check when mount location changes.

False certainty from no-ground-plane fallback

Why it matters: No-ground-plane elevated-feed options exist for some antenna families, but they are not universal cross-band replacements for every magnetic setup.

How to handle it: Validate exact band support, connector path, and pattern behavior before replacing a magnetic-mount shortlist with a no-ground-plane model.

Stainless-label false positive

Why it matters: Different stainless families have different magnetic response, and cold work can change behavior in austenitic materials.

How to handle it: Do not approve by material label alone. Validate magnetic pull and slip behavior at the exact mount location on the real panel.

Cable mechanical mismatch

Why it matters: A lower-loss cable can still be harder on bends and connectors if routing space is tight or repeated movement exists.

How to handle it: Compare attenuation with bend radius, bend moment, and crush limits before freezing cable spec for door, hatch, or edge routes.

Evidence

Primary sources used for the page

Product and cable examples were reviewed on 2026-09-23; regulatory references were reviewed on 2026-10-10. Where model-specific evidence is not public, the page identifies what to request from the supplier.

Published

Updated

Firestik magnetic-mount technical notes
Manufacturer guidance on clean, flat placement, capacitive grounding, maintenance, and side bursts from passing trucks. It does not publish a universal vehicle-speed rating.
Firestik K-11 magnetic mount
Revalidated 2026-04-05 for 4.9 in base, 18 ft coax, and published 3 to 4 ft antenna guidance.
MFJ-335BM heavy NMO magnet mount
Revalidated 2026-04-05 for 5 in footprint, 2 1/2 lb base weight, and medium-to-heavy-duty positioning.
Chelegance JMOUNT-3HD triple base
Reviewed 2026-03-31 for 3 x 90 mm footprint, SO-239 hardware, 5 m RG58, and large-antenna positioning.
MFJ-336T tri-magnet stud platform
Revalidated 2026-04-05 for three 5 in magnets, 1/4 in triangular plate, 17 ft coax, and 3/8-24 hardware.
Antenna Products MagMount X
Revalidated 2026-04-05 for 3 x 88 mm geometry, 3 x 411 N pull-force signal, and bolt-circle top pattern.
MFJ-330 ground plane pad
Revalidated 2026-04-05 for HF boundary handling when direct chassis ground is unavailable on a magnet-mount system.
Belden 8240 RG-58A/U data page
Reviewed 2026-04-05 (spec date shown: 02-20-2026) for attenuation baseline used in the cable-loss table.
Times Microwave LMR-195-UF datasheet
Reviewed 2026-04-06 for attenuation table values (including 13.2 dB/100 ft at 900 MHz) and published max-frequency envelope.
Times Microwave LMR-240 datasheet
Reviewed 2026-04-06 for 900 MHz attenuation (0.07 dB/ft), max frequency, and bending-moment trade-off context.
Times Microwave LMR-240-UF datasheet
Reviewed 2026-04-06 for ultraflex 900 MHz attenuation (0.09 dB/ft) and mechanical-flexibility comparison.
Times Microwave LMR-240 datasheet (full mechanical table)
Reviewed 2026-04-06 for repeated bend radius, bending moment, and flat-plate crush values used in the cable mechanics table.
NIST Guide to SI Appendix B.8
Reviewed 2026-04-05 for pound-force to newton conversion used to normalize pull-force signals.
47 CFR §1.1310 RF exposure limits
Reviewed 2026-10-10 for general-population MPE formulas and table values used in the planning examples.
47 CFR §2.1091 mobile-device RF exposure
Reviewed 2026-10-10 for the mobile-device definition and the 20 cm separation boundary reference.
47 CFR §2.1093 portable-device RF exposure
Reviewed 2026-10-10 for portable-device treatment where radiating structures are within 20 cm of the user.
47 CFR §95.967 CBRS transmitter power limits
Reviewed 2026-10-10 for 4 W AM/FM and 12 W SSB power limits used in service-envelope comparison.
47 CFR §95.1767 GMRS transmitting power limits
Reviewed 2026-10-10 for GMRS main/interstitial channel power boundaries used in the decision table.
47 CFR §95.2767 MURS transmitting power limit
Reviewed 2026-10-10 for 2 W MURS power cap in the service-power envelope.
47 CFR §97.313 Amateur transmitter power standards
Reviewed 2026-10-10 for minimum-necessary-power language and 1.5 kW PEP upper limit context.
NASA modern drag equation
Reviewed 2026-04-06 for drag scaling with velocity squared used in the speed-multiplier section.
PCTEL NMO style mounts
Reviewed 2026-04-06 for 3/4 in hole, 1-1/8 in-18 thread, and panel-thickness boundary values.
PCTEL no-ground-plane elevated-feed antennas
Reviewed 2026-04-06 as a published non-magnetic fallback path (mirror/trunk-lid, no-ground-plane families).
PCTEL no-ground-plane MLPV low-profile antennas
Reviewed 2026-04-06 for ground-plane-independent design statement, IP67 claim, and 1-1/8 in-18 compatibility boundary.
TE NMO through-hole mounts datasheet
Reviewed 2026-04-06 for thick-plate windows (3/16 to 1/2 in), hole-size variants, cable-length defaults, and end-use verification caveat language.
TE vehicle antennas (construction/agriculture) brochure
Reviewed 2026-04-06 for the published validation-test scope note (shock, vibration, wind survival, temperature, humidity).
BSSA stainless magnetic-properties note
Reviewed 2026-04-06 for ferritic/martensitic/duplex vs austenitic magnetic-response boundaries and permeability context.
ASSDA magnetic effects FAQ for stainless
Reviewed 2026-04-06 for cold-work caveat on austenitic magnetic response and family-level magnetic differences.
IEC IP ratings (IEC 60529 context)
Reviewed 2026-04-05 for the definition of what IP codes measure and how they are tested.
ASTM B117 standard practice page
Reviewed 2026-04-05 for corrosion-test scope boundaries (apparatus/procedure vs product-specific life claims).
ISO 16750-3:2023
Reviewed 2026-04-05 for mechanical-load test framing by mounting location in road vehicles.
ISO 20653:2023
Reviewed 2026-04-05 for road-vehicle IP-code scope and test applicability.
FAQ

Detailed questions buyers ask before they commit to a magnetic antenna install

Check common fit, connector, surface, speed, and evidence questions before choosing an antenna mount.

Custom mount inquiry

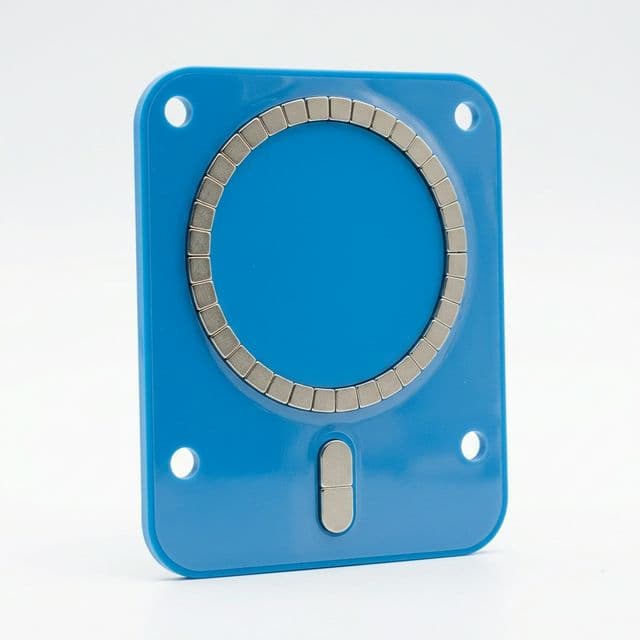

Need a magnetic antenna mount built to your requirements?

Share the connector or bolt pattern, target footprint, mounting surface, quantity, and environment. Coated Magnets can discuss whether a custom rubber-coated magnetic assembly fits your brief. Vehicle retention, RF tuning, and regulatory approval remain with the antenna and vehicle-mount integrator.

If your shortlist already points to larger whips and wider footprints, continue into the dedicated heavy-duty magnetic antenna mount page for triple-platform narrowing.

If your next decision is about threaded holding magnets rather than vehicle antenna mounts, the adjacent guide on threaded magnets covers hardware-first mounting jobs.
